5.0 inch 1080x1080 IPS MIPI DSI Round LCD Display 5inch Circular
Color TFT LCD Screen Module LCM Panel HX8399C 50Pin
Introduction
TS050YMM-J40-CT is a color active matrix TFT-LCD Panel using LTPS
TFT's (Thin Film Transistors) as an active switching devices. This
model is composed of a TFT-LCD Panel, a driving circuit and a back
light system. It is a transmissive type display operating in the
normal black. This TFT-LCD has a 5.0 inch diagonally measured
active area with FHD resolutions (1080 horizontal by 1080 vertical
pixel array). Each pixel is divided into Red, Green, Blue dots
which are arranged in 1pixel 2 domain and this panel can display
16.7M colors.
Features : 0.2t Glass (Single) , High contrast ratio and wide
viewing angle , Module Design , RoHS Compliant.

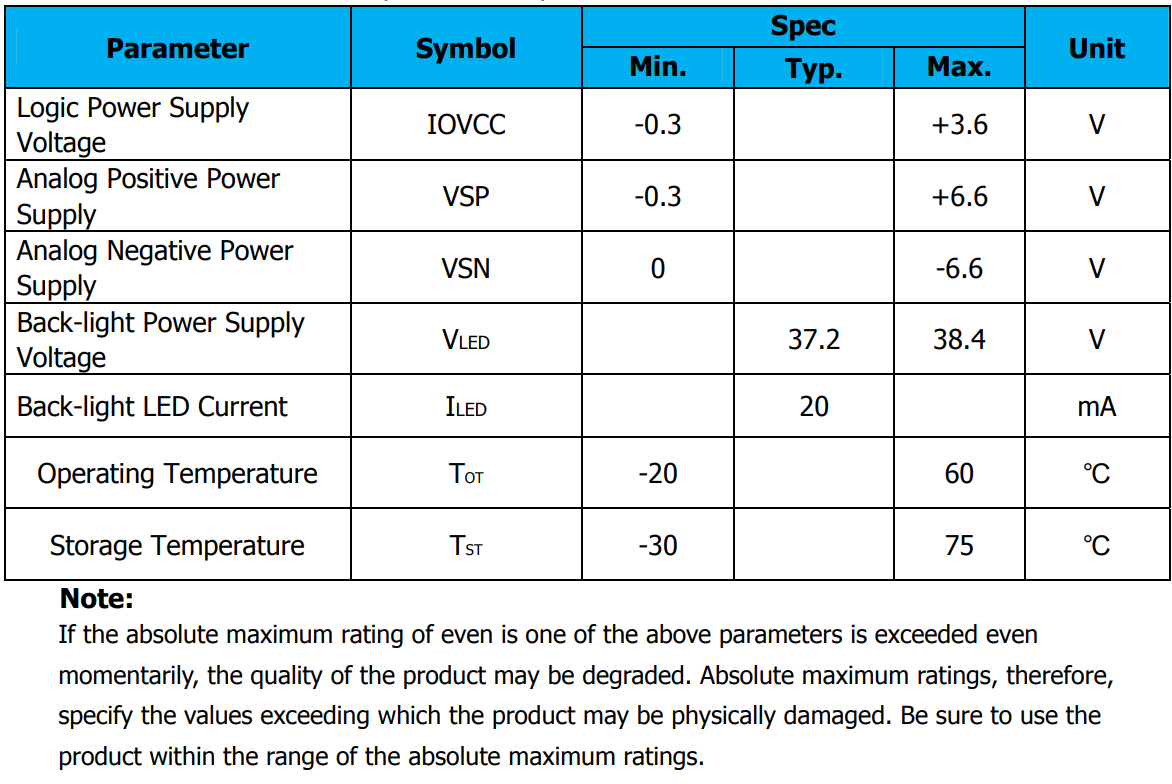

ABSOLUTE MAXIMUM RATINGS
ELECTRICAL SPECIFICATIONS
FAQ:
1.How can I find the right product?
Please send us your requirements or datasheet, we will recommend
our standard products, if it’s not fit, we will do the necessary
adjustment & customization.
2. Do you accept sample order or small quantity order?
Yes, you can place sample orders for testing first, and small
quantity order as pilot production (no less than MOQ)
3. What are the payment terms?
We usually accept T/T, Paypal, other terms to be negotiated.
4.What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5
weeks for mass production (basing on the quantity and particular
product).
