X154-2864KLBTG01-C24 Folding Type OEL Display Module Pixel Number: 128 x 64, Monochrome, COG Package

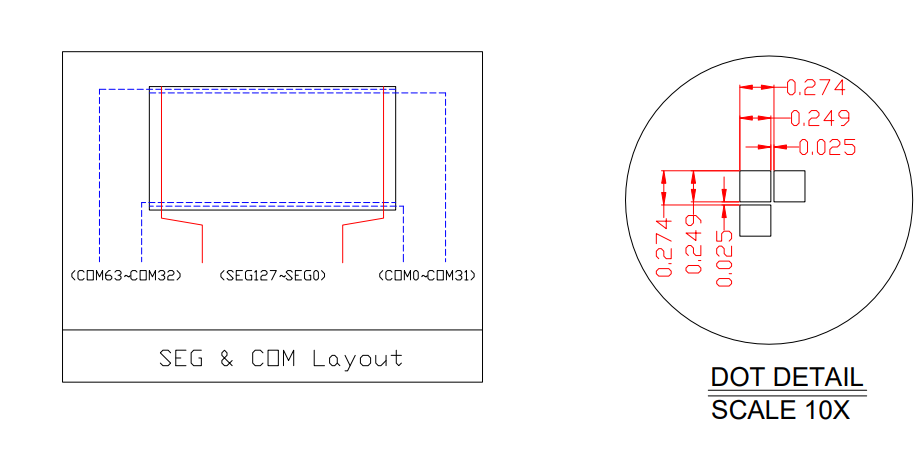

Active Area / Memory Mapping & Pixel Construction

Mechanical Drawing

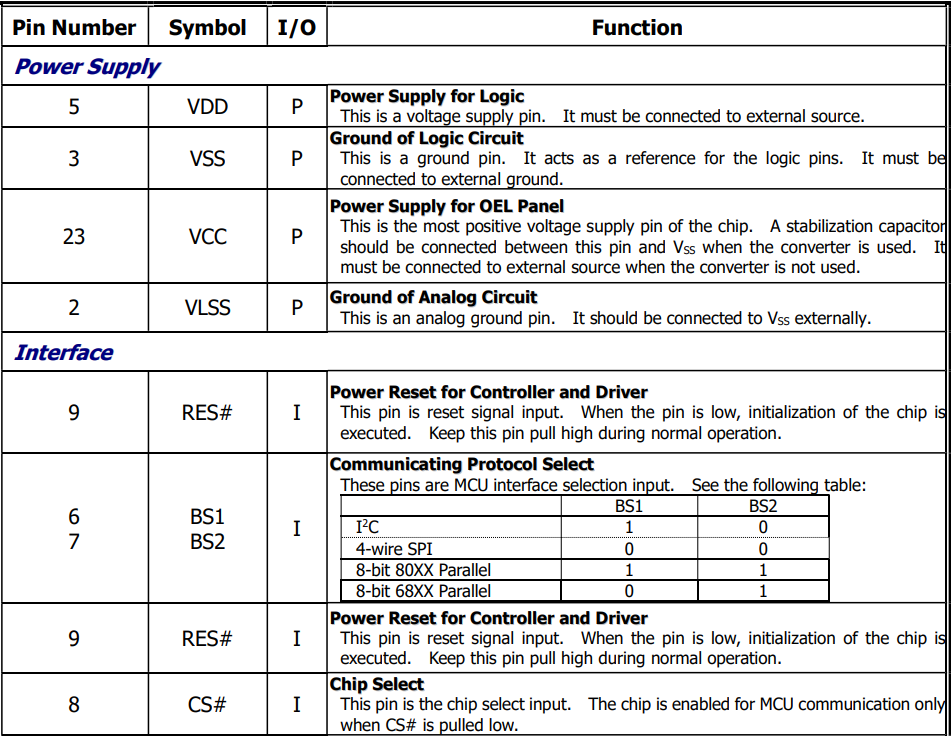

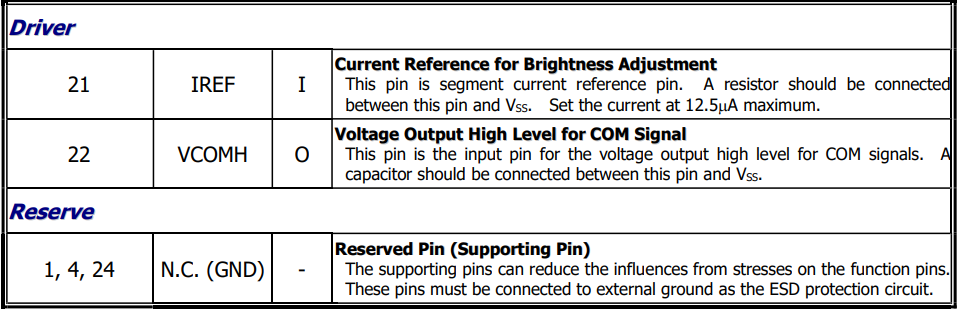

Pin Definition

Recommended Components:

C1, C2: 1μF / 16V, X5R

C3: 2.2μF /25V

C4: 4.7μF / 25V, X7R

C5: 0.1μF/ 25V, X7R R1, R2: 47kΩ R3: 910KΩ, R3 = (Voltage at IREF - VSS) / IREF Q1: FDN338P Q2: FDN335N Notes: VDD: 1.65V~3.3V VCC_IN: 11.5~12.5V

Serial Interface Timing Characteristics: (4-wire SPI)
