3.5inch 320x240 ST7272A TFT LCD Display Tft Screen Panel With RGB Interface

Product Description

ChengHao Display model T-350HS5401 is a color active matrix thin film transistor (TFT)liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 3.5 (Square screen) inch diagonally measured active display area with 320*3(RGB)*240 resolution.
The driver used for this project is the HX8238D or compatible and can display 65k/262k colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.

1.Pin Assignments

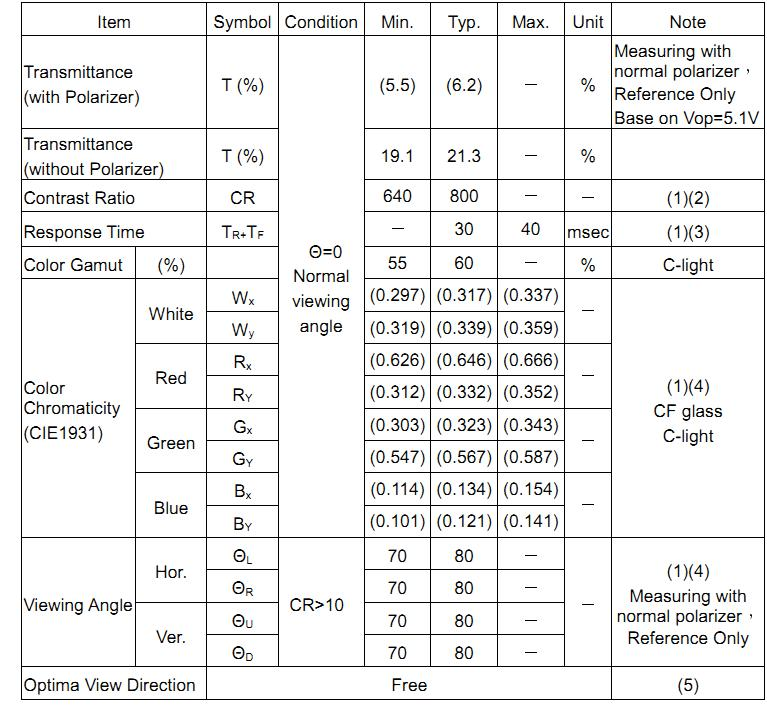

2.Electro-Optical Characteristics

Note : Color chromaticty is for LCD only.

Company Overview

- Founded: 2010
- Certifications: ISO9001 (Quality) & ISO14001 (Environment)
- Industry Focus: Industrial display solutions

---

Product Portfolio
1. Display Technologies:
   - Monochrome Displays: TN/STN/FSTN LCM
   - Advanced Modules: COG LCD, VATN-LCD
   - High-End Displays: TFT LCD, OLED
   - System Integrated Solutions

2. Technical Capabilities:
   - Holder of multiple global patents
   - R&D focus: Embedded systems, LCD/TFT/OLED innovations

---

Core Competencies
1. LVHM Expertise:
   - Specializes in Low-Volume/High-Mix production model
   - 14+ years experience handling complex orders

2. Market Position:
   - Leader in small/medium industrial displays (≤15.6")
   - Solutions partner beyond display manufacturing

3. Service Advantages:
   - Competitive logistics network
   - 90% products covered by 3-5 year warranty

---

Future Focus
Continue advancing:
- Display module R&D
- Embedded system integration
- Next-gen LCD/TFT/OLED technologies

---

Key Data Highlights:
▶ 90% product warranty coverage
▶ Dual ISO certification compliance
▶ Patent-backed innovation system
