2.8 Inch 240x320 Resolution SPI Rgb Interface TN TFT Lcd Display With St7789v Driver IC Customized Lcd Panel CTP

The 2.8-inch TN TFT LCD has a 240x320 resolution, allowing images to be rendered with fine detail. Use SPI and RGB interface for stable data transmission, making it suitable for various devices. The ST7789V driver chip performs well, and makes refreshing rate of the display higher and latency lower and moving pictures smoother.

(Plot space, good display, suitable for portable electronic products, to bring users a high-quality visual experience.)

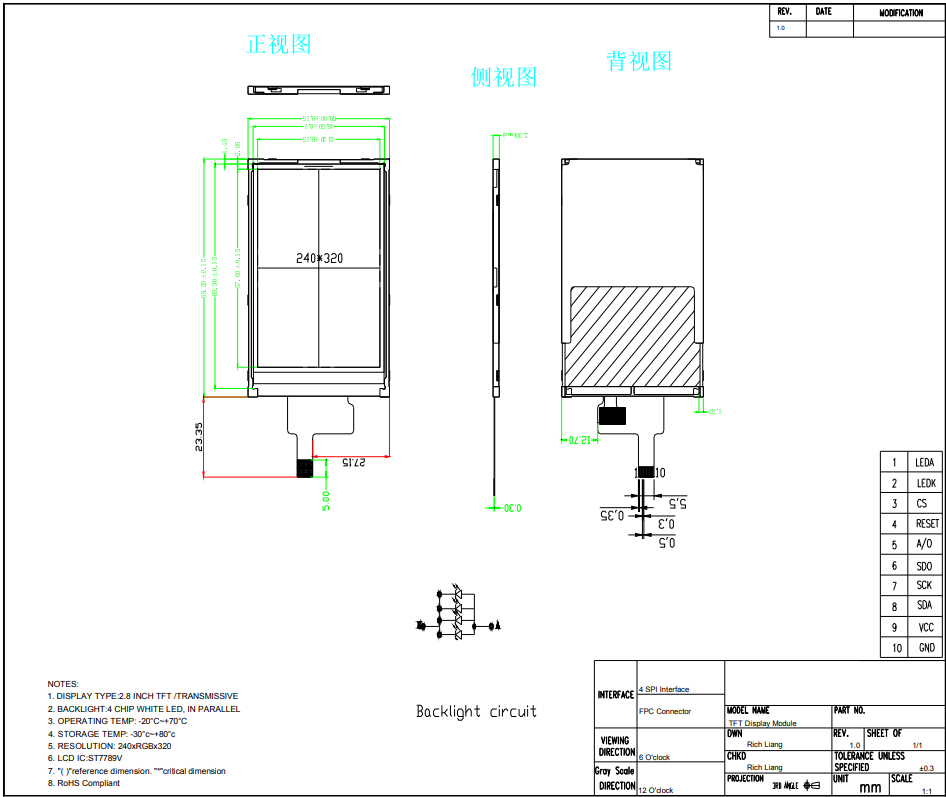

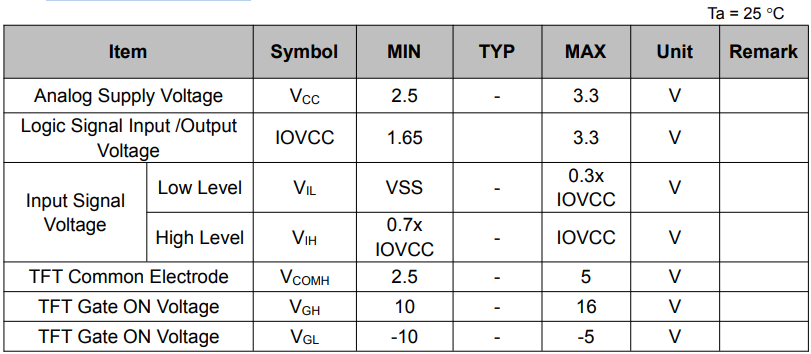

Absolute Maximum Ratings

Driving TFT LCD Panel

Driving Backlight

Note 1: Each LED: IF =20 mA, VF =3.2V.

Note 2: Optical performance should be evaluated at Ta=25℃ only.

Note 3: If LED is driven by high current, high ambient temperature & humidity condition. The life time of LED will be reduced. Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data.

Packing Method

1. Put module into tray cavity:

2. Tray stacking

3. Put 1 cardboard under the tray stack and 1 cardboard above:

4. Fix the cardboard to the tray stack with adhesive tape:

5. Put the tray stack into carton.

6. Carton sealing with adhesive tape.
