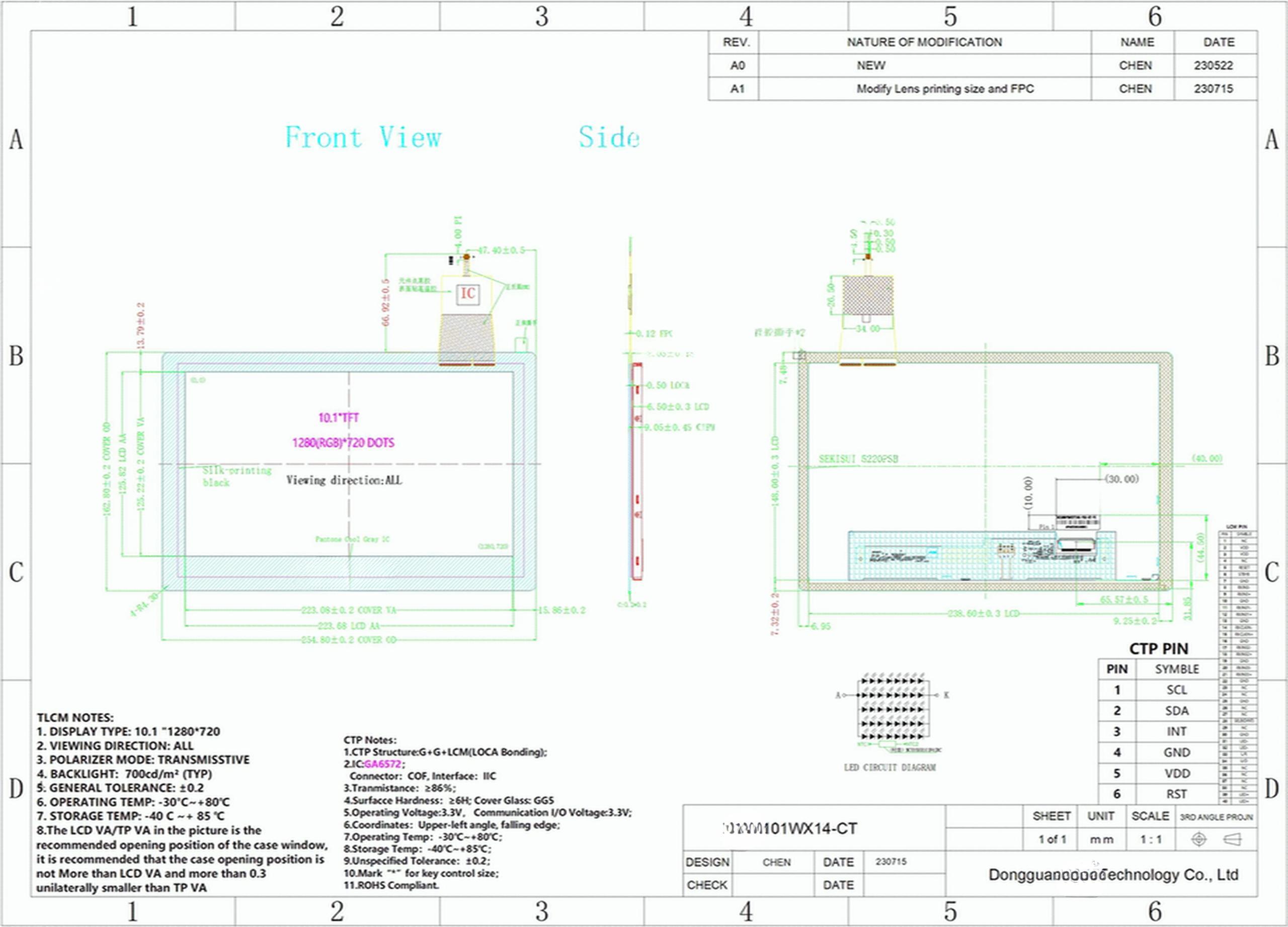

10.1 Inch 1280x800 Resolution Sunlight Readable IPS PCAP TFT LCD
Capacitive Touch Screen LCM
The 10.1-inch PCAP TFT LCD capacitive touch screen with IPS
technology offers rich and detailed images, vividly presenting all
kinds of information. It is designed to be readable in bright
sunlight and is not affected by direct sunlight, allowing one to
see the outdoor environment. IPS technology provides wide viewing
angles and vivid colors. With high-precision capacitive touch
control, it is suitable for outdoor working devices, intelligent
conference panels, etc., offering a high-quality interactive
experience.
TFT LCD capacitive touch screen
The TFT LCD Capacitive Touch Screen is a premium product that
combines the functionality of a traditional LCD display with a
responsive capacitive touch panel. It is designed to provide users
with an intuitive interactive experience based on a variety of
display needs, making it ideal for a variety of applications such
as gaming, industrial control systems, and consumer electronics.
Touch panel interface: I2C
The touch panel interface of this product is I2C, which is
Inter-Integrated Circuit. This makes communication between the
touchpad and controller simple and efficient, resulting in a more
responsive and precise touch experience.
Screen size: 10.1 inches
The TFT LCD capacitive touch screen uses a tft screen with a
diagonal measurement of 10.1 inches, providing ample space to
display content and a comfortable touch experience. This makes it
suitable for a variety of applications that require larger screen
sizes.
NO. | Symbol | Description |
1 | NC | NC |
2-3 | VDD | POWER SUPPLY |
4 | NC | NC |
5 | RESET | Reset pin |
6 | STBYB | Standby mode Normally pulled high STBYB=1,normal operation STBYB=0,timing contrller,source Driver will turn off,all output are High-Z |
7 | GND | Ground |
8 | IN0- | LVDS DSI differential clock pair |
9 | IN0+ | LVDS DSI differential clock pair |
10 | GND | Ground |
11 | IN1- | LVDS DSI differential clock pair |
12 | IN1+ | LVDS DSI differential clock pair |
13 | GND | Ground |
14 | IN2- | LVDS DSI differential clock pair |
15 | IN2+ | LVDS DSI differential clock pair |
16 | GND | Ground |
17 | CLKIN- | LVDS DSI differential clock pair |
18 | CLKIN+ | LVDS DSI differential clock pair |
19 | GND | Ground |
20 | IN3- | LVDS DSI differential clock pair |
21 | IN3+ | LVDS DSI differential clock pair |
22 | GND | Ground |
23-24 | NC | NC |
25 | GND | Ground |
26-27 | NC | NC |
28 | SELB | 6bit/8bit mode select |
29 | NC | NC |
30 | GND | Ground |
31-32 | |
