3.2 Inch 240X320 SPI Tft Lcd ST7789V TFT LCD Module

1.Product Features

1. Using high transmittance glass substrate: This LCD screen uses a glass substrate with high light transmittance, which makes the screen clear, bright, distinct, and colorful. At the same time, because it is designed with a low-power driver IC circuit, the whole machine consumes less power. The volume is greatly reduced, thereby reducing the user's cost of use.
2. Ultra-thin body: Small size, thin thickness, light weightand and easy to carry and use.
3. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)
4. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.
5. Soft and comfortable screen: The screen will not flicker, which can reduce the damage to the eyes caused by the display and make the eyes less likely to tire.
6. Uniform brightness: The brightness of this LCD screen is very uniform and it can maintain high definition even under strong outdoor light.

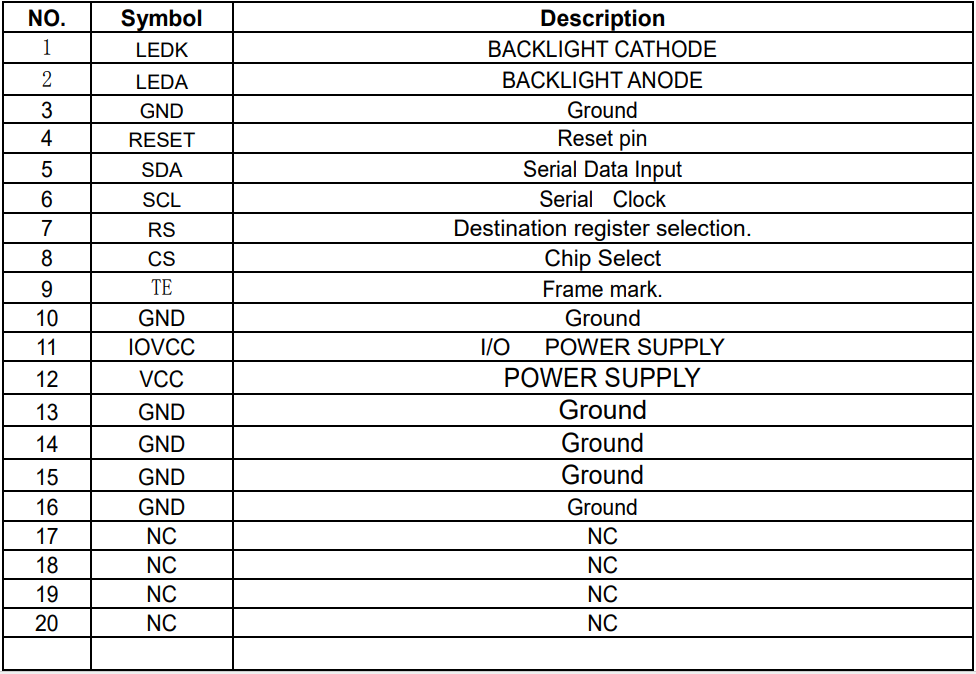

Pin Assignments

Packing Method

1. Put module into tray cavity.

2. Tray stacking.

3. Put 1 foam under the tray stack and 1 foam above.

4. Fix the cardboard to the tray stack with adhesive tape.

5. Put the tray stack into carton. 6. Carton sealing with adhesive tape.

Company Overview

- Founded: 2010
- Certifications: ISO9001 (Quality) & ISO14001 (Environment)
- Industry Focus: Industrial display solutions

---

Product Portfolio
1. Display Technologies:
   - Monochrome Displays: TN/STN/FSTN LCM
   - Advanced Modules: COG LCD, VATN-LCD
   - High-End Displays: TFT LCD, OLED
   - System Integrated Solutions

2. Technical Capabilities:
   - Holder of multiple global patents
   - R&D focus: Embedded systems, LCD/TFT/OLED innovations

---

Core Competencies
1. LVHM Expertise:
   - Specializes in Low-Volume/High-Mix production model
   - 14+ years experience handling complex orders

2. Market Position:
   - Leader in small/medium industrial displays (≤15.6")
   - Solutions partner beyond display manufacturing

3. Service Advantages:
   - Competitive logistics network
   - 90% products covered by 3-5 year warranty

---

Future Focus
Continue advancing:
- Display module R&D
- Embedded system integration
- Next-gen LCD/TFT/OLED technologies

---

Key Data Highlights:
▶ 90% product warranty coverage
▶ Dual ISO certification compliance
▶ Patent-backed innovation system
