11.6 Inch LCD Screen 1920×1080 EDP Interface Back Folding All Iron
Anti Blue Light TFT LCD LCD Module
In order to enable more customers to choose the appropriate LCD
screens, ESEN has been cooperating with LCD glass suppliers for a
long time. It has developed various display sizes such as TFT LCD,
AMOLED LCD, PMOLED LCD, flexible LCD, transparent LCD, etc.,
including circular, square, and elongated shapes. At the same time,
ESEN can customize various touch screens with different shapes,
sizes, curvatures, single-point touch, multi-point touch, etc.,
according to the different application environments of customers'
products. Most of our products can be used in smart furniture,
smart wearables, mobile phones, industrial control equipment,
digital products, medical devices, automotive industrial control,
advertising machines, etc. Our featured services: professional
customized production, standard screen inventory.
1. Application
This specification applies to a color TFT-LCD Module,
2. Overview
This Open-cell is a color active matrix LCD open-cell incorporating
Oxide TFT (Thin Film Transistor).It is composed of a color TFT-LCD
panel, driver ICs, a control circuit and power supply circuit.
Graphics and texts can be displayed on a 1920×3×1080 dots panel

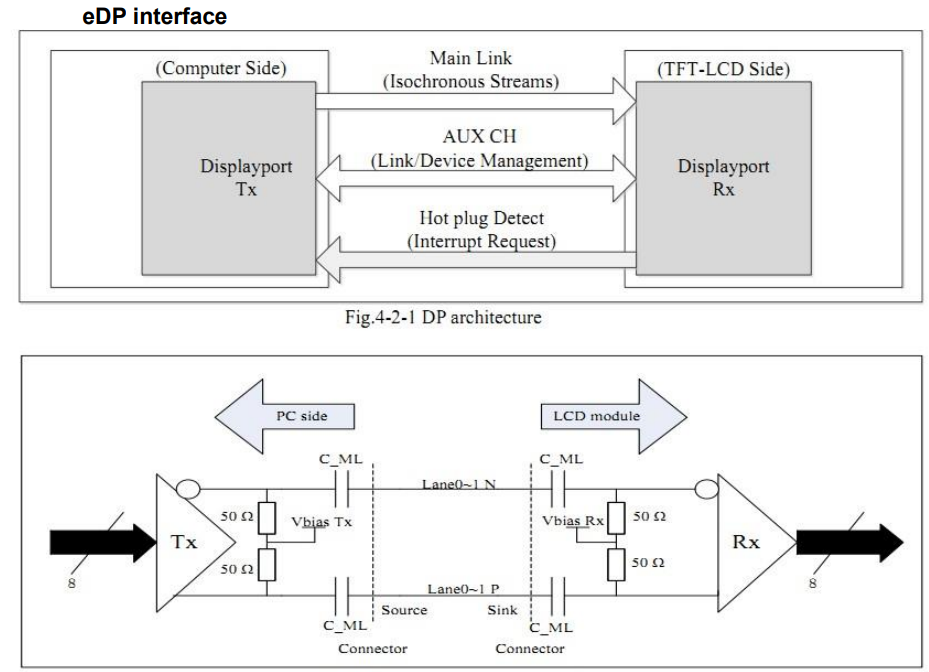

with 16,777,216 colors by using eDP (Embedded Display Port) Ver1.2
interface and supplying +3.3V DC supply voltage for TFT-LCD panel
driving. In this TFT-LCD panel, color filters for excellent color
performance is incorporated to realize brighter and clearer
pictures, making this open-cell optimum for use in multi-media
applications. Optimum viewings are in all directions. Without
Backlight-driving LED controller. eDP transfer rate specification:
2.7Gbps/2 lane.
Driving interface of PWB

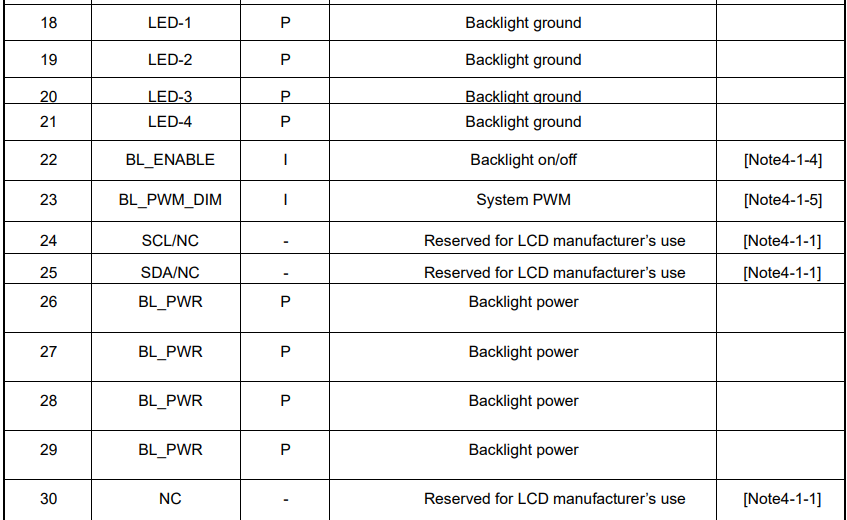

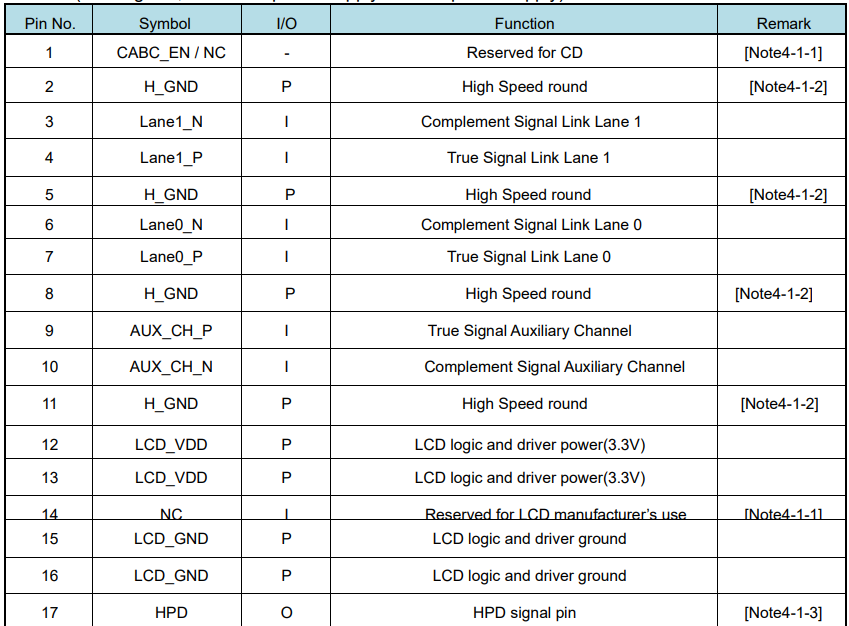

CN1 (eDP signals, +3.3V DC power supply and B/L power supply)
[Note 4-1-1] Don’t input any signals or any powers into a NC pin.
Keep the NC pin open.
[Note 4-1-2] The shielding case is connected with signal GND.
・Connector used :20455-030E-76(I-PEX)
・Corresponding connector : 20453-030T (I-PEX)
(Panda is not responsible to its product quality, if the user
applies a connector not corresponding to the above model.) The
equivalent circuit figure of the terminal.
