3.5inch Tft Lcd 3.5inch Lcd Module 320x240 Resolution IC SSD2219
With RTP
Absolute Maximum Ratings
| Item | Symbol | MIN | MAX | Unit | Remark |
| Supply Voltage | VDD | -0.3 | 5.0 | V |
|
| Input Signal Voltage | Vin | -0.3 | VDD+0.3 | V |
|
| Logic Output Voltage | VOUT | -0.3 | VDD+0.3 | V |
|
| Operating Temperature | TOPR | -20 | 70 | ℃ |
|
| Storage Temperature | TSTG | -30 | 80 | ℃ |
4. Operating conditions:
|
| Parameter | Symbol | MIN | TYP | MAX | Unit | Remark |
| Power Voltage | Vcc | 3.0 | 3.3 | 3.6 | V |
|
| Digital Operation Current | Icc |
| 8.6 |
| mA |
|
| Gate On Power | VCOMH | 2.5 | 13.9 | 4.5 | V |
|
| Gate Off Power | VGH | - | -13.6 | 15 | V |
|
| Vcom High Voltage | VcomH | - | 3.9 | - | V | Note1 |
| Vcom low Voltage | VcomL | - | -1.2 | - | V | Note1 |
| Vcom level max | VcomA | - | - | 6 | V |
Note1. VcomH& VcomL:Adjust the color with gamma data. Vp-p should
be higher then 4V.(Option 5V)
Note2: Viewing direction is follow the data which measured by
optics equipment.
Note3: Requirements on Environmental Protection: RoHS
Note4: LCM weight tolerance: +/- 5%

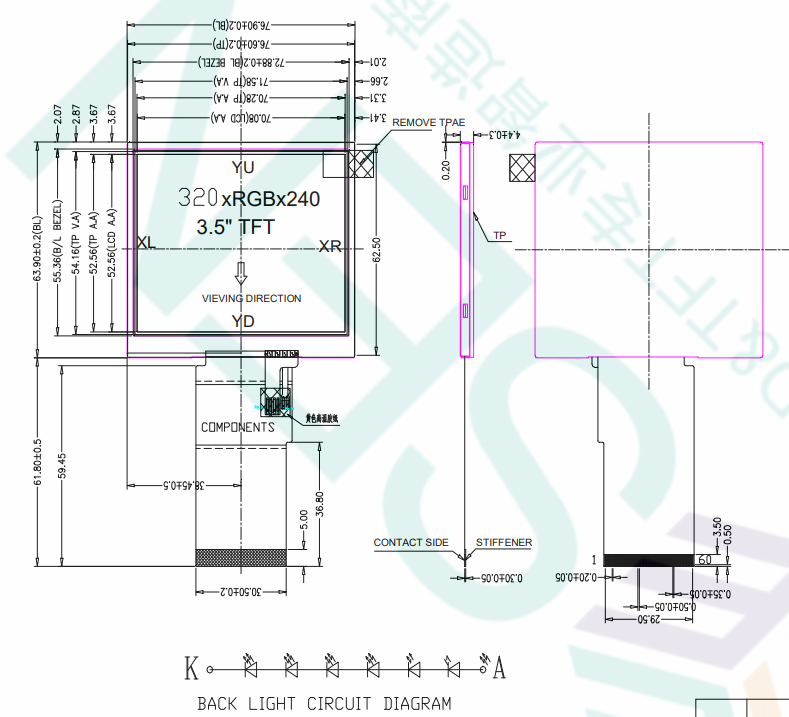

Drawing:
FAQ
Q: What is the backlight color of the T035Q08-T?
A: The backlight color of the product is white.
Q: What temperature range can the T035Q08-T operate in?
A: The product can operate in a wide temperature range of -20 ~ +70
℃.
Q: Does the T035Q08-T come with any certificates?
A: Yes, the product has RoHS, CE, and FCC certificates.
Q: What is the warranty period for the T035Q08-T?
A: The product has a one-year warranty period.
Q: What is the MOQ for the T035Q08-T?
A: The MOQ for the product is 1 piece.
Q: What is the delivery period for the T035Q08-T?
A: The delivery period for the product is 7-15 working days.
