0.96 inch SSD1315 OLED Display Module Folding Type OEL Display ModulePixel Number 128 x 64 Monochrome COG Package

Ask Lasest Price
Brand Name :	ESEN
Model Number :	HP096-2864KLBAG01-H30
Certification :	ISO9001/ISO14001
Price :	Please make an enquiry
Payment Terms :	T/T,L/C
Supply Ability :	300K/mth
Delivery Time :	3-4 weeks

Add to Cart

Product Details
Company Profile

0.96 inch SSD1315 OLED Display Module Folding Type OEL Display ModulePixel Number 128 x 64 Monochrome COG Package

Description

HP096-2864KLBAG01-H30 is a 128x64 resolution COG graphic OLED display module, diagonal size 0.96 inch. The model is designed as consumer grade which is having the advantage of competitive price. The module is built-in with SSD1315 IC; it supports I2C and 3-wire /4-wire SPI serial interface. The supply voltage for logic is 3V, supply voltage for display is 7.5V, display with 50% check board current is 6mA @ 7.5Vcc (typical value), driving duty 1/64.HP096-2864KLBAG01-H30 module supports internal Charge Pump supply and external VCC supply.

This 0.96 inch COG Graphic OLED module is suitable for wearable device, smart home applications and etc. This module can be operating at temperatures from -30℃ to +70℃; its storage temperatures range from -30℃ to +70℃.

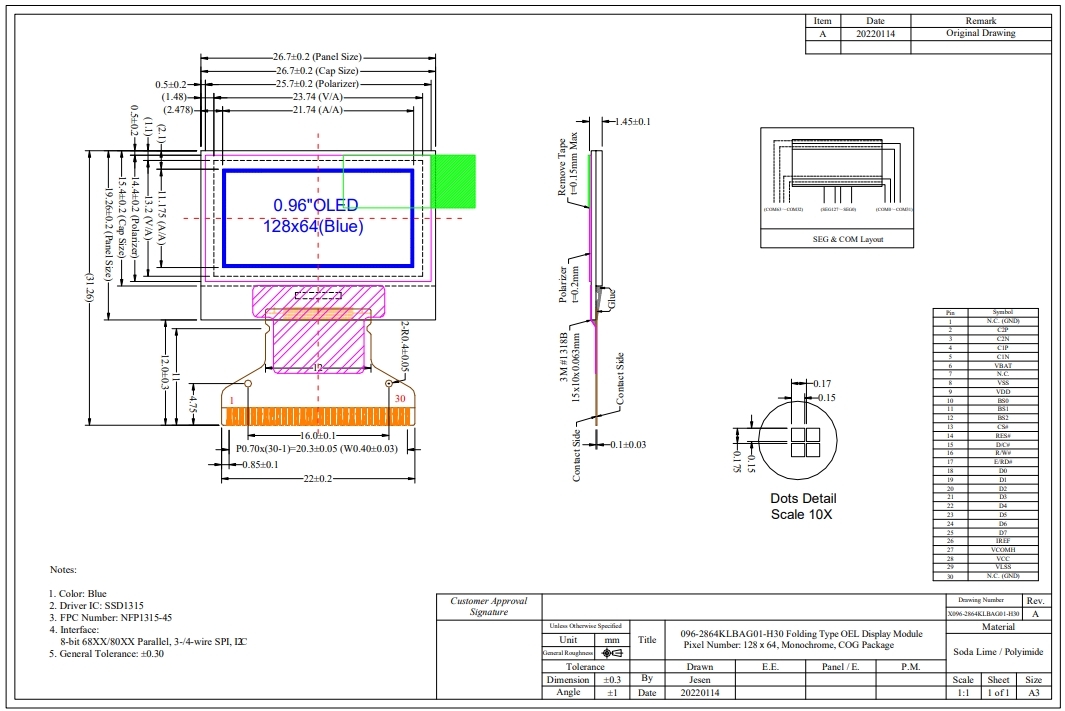

DRAWING

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	-0.3	4.0	V
Charge Pump Regulator	VBAT	-0.3	6.0	V
Supply Voltage for Display	VCC	0	18.0	V
Operating Temperature	TOP	-30	+70	°C
Storage Temperature	TSTG	-30	+70	°C

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3.0	3.3	V
Supply Voltage for Display	VCC	－	7.0	7.5	8.0	V
Input High Volt.	VIH	－	0.8×VDD	－	VDD	V
Input Low Volt.	VIL	－	0	－	0.2×VDD	V
Output High Volt.	VOH	－	0.9×VDD	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.1×VDD	V
Operating Current for VCC (50% display ON)	ICC	－	－	6	12	mA

Interface Pin Function

No.

Symbol

Function

C2N

C2P/C2N – Pin for charge pump capacitor; Connect to each other with a capacitor.

C2P

C1P

C1P/C1N – Pin for charge pump capacitor; Connect to each other with a capacitor.

C1N

VBAT

Power Supply for DC/DC Converter Circuit
This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be float when the converter is not used.

VCC

Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
When charge pump is enabled, a capacitor should be connected between this pin and VSS.

VSS

Ground of Logic Circuit
This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground.

VDD

Power Supply for Logic
This is a voltage supply pin. It must be connected to external source.

BS0

Communicating Protocol Select
These pins are MCU interface selection input. See the
following table:

BS[1:0]	Interface
00	4-line SPI
01	3-line SPI
10	I2C

BS1

CS#

Chip Select
This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.

RES#

Power Reset for Controller and Driver
This pin is reset signal input. When the pin is low, initialization of the chip is executed.

D/C#

In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.

14~16

D0~D2

When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.

IREF

Current Reference for Brightness Adjustment
This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 30uA.

VCOMH

COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.

VCC

Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
When charge pump is enabled, a capacitor should be connected between this pin and VSS.

VLSS

Ground of Analog Circuit
This is an analog ground pin. It should be connected to VSS externally.
